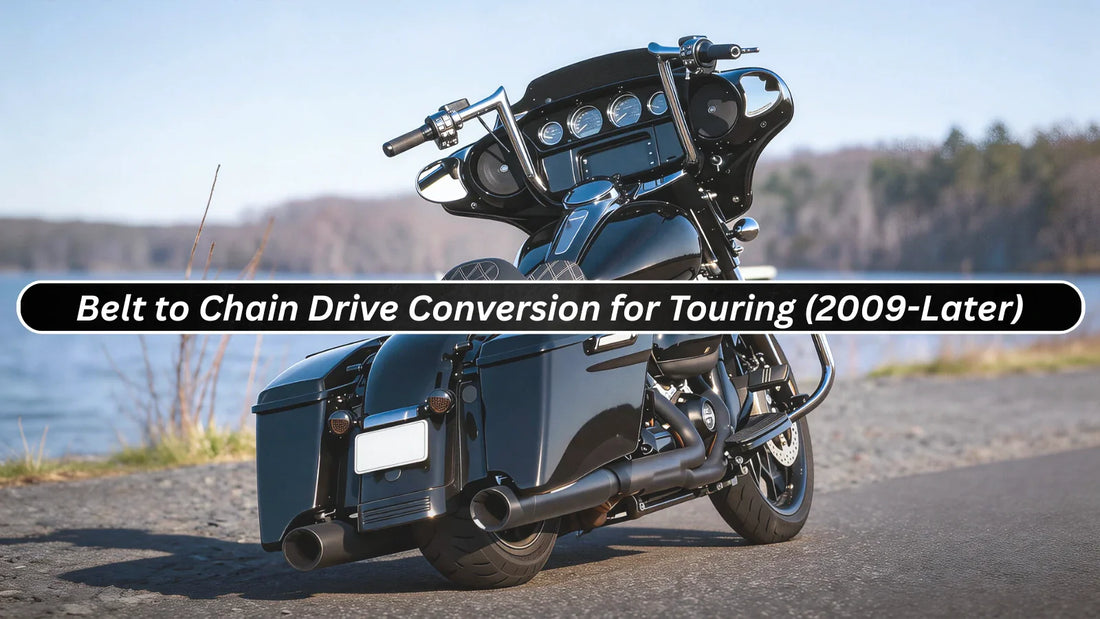

Chain Drive Conversion Teardown for Harley-Davidson Touring Models (2009-Later)
Factory Kevlar belts snap under the shear stress generated by large displacement Twin Cam and Milwaukee-Eight engines. The Cycparts belt-to-chain conversion replaces the rubber final drive with a chain and machined steel sprockets. This mechanical swap reduces belt deflection and tooth shear under heavy torque loads.
| Feature | Application |
| 25-Tooth Front Sprocket | 20CrMnTi case-hardened steel. Mounts directly to the transmission mainshaft to handle engine torque output. |
| 53-Tooth Rear Sprocket | 45# medium-carbon steel. Replaces the factory rear belt pulley to establish the final drive ratio. |
| Offset Rear Spacer | 6061 aluminum alloy with included bearing. Aligns the rear sprocket with the transmission output to clear the swingarm. |
| Final Drive Chain | Connects the 25-tooth front and 53-tooth rear sprockets for physical power transmission. |
Real-World Pain Points
Belt Tooth Shear on Hard Launches
Heavy baggers running large displacement engines generate massive low-end torque. Dumping the clutch transfers rotational force directly to the factory belt teeth, exceeding the shear limit of the rubber compound. This physical stress strips the cogs off the belt backing, resulting in immediate driveline failure.
The Cycparts conversion replaces rubber cogs with a chain drive. The 20CrMnTi front and 45# steel rear sprockets handle direct mechanical force without stripping. The tensile strength of the chain links withstands clutch dumps and heavy throttle applications.
Debris Punctures and Snapped Belts
Touring chassis exposes the final drive to road debris. A rock caught between the rear pulley and the belt punctures the Kevlar backing. This structural compromise causes the belt to snap under normal acceleration loads.
A chain crushes or ejects standard road debris. The open sprocket design prevents material buildup between the chain links and the sprocket teeth. The 45# steel rear sprocket resists rock strikes without suffering structural degradation.
Belt Deflection from Suspension Geometry Changes
Touring models running extended rear shocks alter the swingarm angle. This geometry change causes belt deflection. The resulting slack allows the belt to skip teeth on the pulley during hard deceleration, physically damaging both the belt and the aluminum pulley.
Chains utilize threaded adjusters and axle blocks for tensioning. The chain accommodates variations in swingarm geometry across the suspension arc. Proper chain slack settings allow for full suspension travel without skipping teeth on the 53-tooth steel rear sprocket.
Thermal Degradation of Rubber Compounds
High-displacement builds produce excess primary and exhaust heat. The factory belt operates in close proximity to these heat sources. Repeated thermal cycling hardens the rubber compound, causing it to dry out, crack, and lose elasticity over thousands of miles.
Metal drive components remain unaffected by standard operating temperatures near the primary housing. The Cycparts 6061 aluminum spacer and steel sprockets maintain their dimensional tolerances regardless of localized heat soak.
Garage Talk
Q: What is the final drive ratio with this setup?
A: The 25-tooth front and 53-tooth rear sprocket yield a 2.12:1 final drive ratio. Divide 53 by 25 to get your baseline.
Q: Does the primary housing need to come off for installation?
A: Yes. Pull the outer primary cover, primary chain, clutch basket, and compensator. You need a mainshaft sprocket wrench and a primary drive locking tool.
Q: Do I need to modify the swingarm for clearance?
A: No. The included 6061 aluminum spacer provides the necessary offset. It aligns the chain to clear the factory swingarm on compatible 2009-later Harley-Davidson Touring frames.
Q: How do I measure the chain tension?
A: Measure vertical deflection at the tightest spot in the chain with the rider sitting on the bike. Re-check the measurement after the first 100 miles of initial break-in.
Q: Can I reuse the stock pulley bolts?
A: No. Always use new hardware for the rear sprocket. Apply red threadlocker and torque to factory service manual specifications in a star pattern.
Q: How often does the chain require service?
A: Clean and lube the chain every 500 miles. Inspect sprocket teeth for hooking during routine oil changes.
