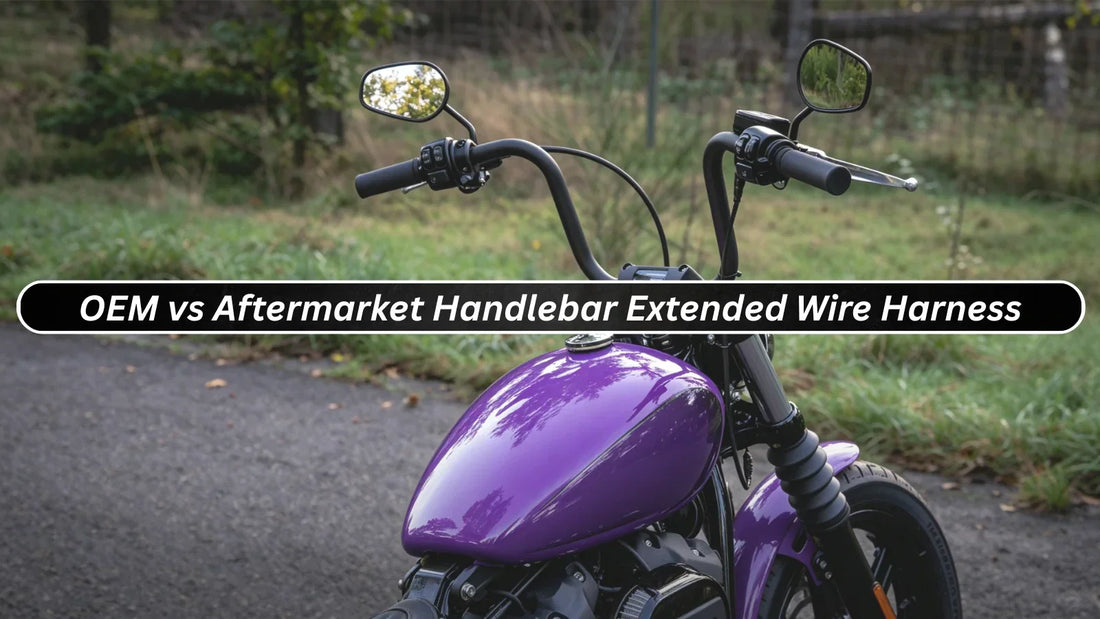

OEM vs Aftermarket Handlebar Extended Wire Harness

OEM approach follows factory replacement procedures and uses vehicle-specific extension components. Aftermarket CAN-Bus wire harness extensions offer a plug-in solution for riders who want to complete a handlebar installation without cutting or rebuilding the original switch wiring.

Both methods solve the same physical problem: insufficient harness length after changing handlebar height.

Feature	Application
CAN-Bus Switch Extension Harness	Adds additional length between factory switch wiring connections for taller handlebar installations.
Plug-In Connector Design	Keeps the original switch harness structure intact without cutting individual wires.
Handlebar Height Support	Designed for 8", 10", 12", 14", and 16" handlebar setups.
Internal Handlebar Routing	Compact connectors allow routing through many internally wired handlebars.
Fitment Range	Compatible with 2012-later Dyna, 2011-later Softail, 2014-later Touring, and 2014-later Sportster models.

OEM Harness Extension vs Aftermarket Extension: What Is Different?

Factory Fitment vs Installation Flexibility

OEM extension components are developed around specific motorcycle models and factory installation procedures. Harley-Davidson provides handlebar installation guidelines that include switch wire extension options for certain model years and configurations.

The advantage of the OEM route is factory matching. The disadvantage is that riders must select the correct component according to year, model, and handlebar setup.

Aftermarket CAN-Bus extensions focus on a wider installation range. A plug-in harness allows riders to add the required wire length while keeping the original connector layout.

Keeping Factory Wiring vs Cutting and Rebuilding

Traditional custom wiring often requires cutting wires, adding sections, and reconnecting terminals. This method gives full control over wire length but requires correct routing, insulation, and connector work.

Modern Harley-Davidson handlebar wiring uses compact connectors and CAN-Bus systems. Improper routing or damaged insulation can create electrical faults. Factory service information also emphasizes careful wire pulling and checking for damaged insulation during internal handlebar wiring.

A plug-in extension harness adds length without opening the original switch harness. The connection remains reversible if the motorcycle returns to a stock handlebar setup.

Real-World Pain Points

Factory Wires Too Short After Installing Tall Handlebars

A stock handlebar places the switch housings at a fixed distance from the wiring connection points. Installing taller bars increases this distance, leaving the original harness stretched during steering movement.

The Cycparts CAN-Bus extension harness adds the required length between connection points. The switch wiring maintains a natural routing path instead of being pulled tight around the steering area.

Internal Wiring Becomes Difficult During Handlebar Installation

Many riders route wiring inside the handlebar for a cleaner appearance. The problem appears when the harness barely reaches the exit point.

Pulling a tight harness through the handlebar increases stress on connectors and wire insulation. Harley-Davidson service procedures recommend careful routing and note that extensions should be installed at the riser side when required.

The aftermarket extension provides additional harness length before internal routing. This gives more room for positioning the connectors and organizing the wiring path.

Avoiding Permanent Changes to Original Harnesses

Cutting factory wiring creates a permanent modification. Any future electrical diagnosis must consider added connections, splices, and modified sections.

A plug-in extension keeps the original harness connectors unchanged. The extension works as an additional section between factory connection points.

Installation Time During Garage Projects

Handlebar replacement already requires mechanical work around controls, grips, risers, and cables. Electrical modification can add additional steps when every wire needs individual attention.

An extension harness separates the electrical length issue from the rest of the handlebar installation. The installer can focus on routing and connector placement instead of rebuilding the harness.

Garage Talk

Q: Do I need to cut my factory CAN-Bus wires?

A: No. The extension connects between the existing harness points. The original switch wiring remains unchanged.

Q: Is this only for tall ape hanger handlebars?

A: No. Any handlebar change that creates insufficient wire length may require an extension.

Q: Can I hide the harness inside the handlebar?

A: Yes. Check connector size and internal clearance before routing. Keep connectors staggered inside the bar.

Q: Should I install the extension before routing the wires through the bar?

A: Follow the handlebar routing order for your setup. Extensions are commonly installed on the riser side after internal routing.

Q: Can I return the bike to stock handlebars later?

A: Yes. A plug-in extension can be removed without cutting the original harness.

Q: What should I check after installation?

A: Test all switch functions. Check turn signals, horn, and control operation before final assembly.
