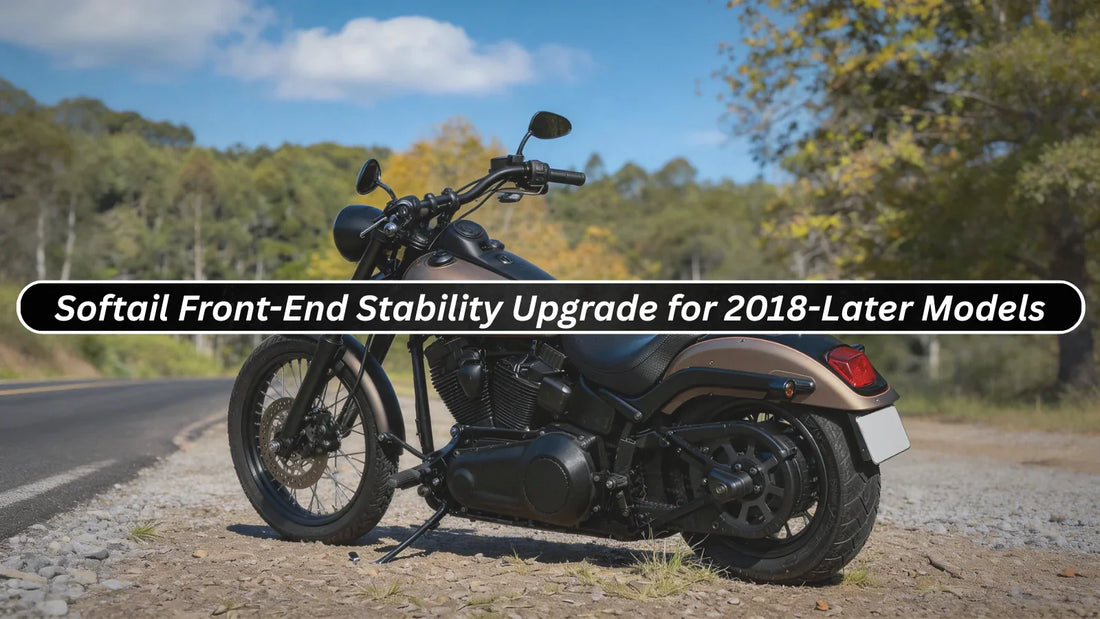

Softail Front-End Stability Upgrade: Cycparts 5-Piece Fork Brace for 2018-Later Models
Factory 49mm telescopic forks for Softail chassis suffer from torsional flex under hard braking and aggressive cornering. The Cycparts 6061-T6 aluminum fork brace physically locks the lower fork sliders together. This rigid connection prevents independent fork leg deflection and stabilizes the front suspension geometry.
| Feature | Application |
| 6061-T6 Aluminum Construction | Resists lateral and torsional forces generated by the front wheel mass. |
| 5-Piece Split Design | Clamps directly around the fork legs. Eliminates the need to drop the front end or remove the fork tubes from the triple trees. |
| 8.5-Inch Center Distance | Matches the factory fork spread to clamp onto compatible conventional front ends without binding. |
| Black Anodized Finish | Penetrates the aluminum surface to prevent oxidation and bare metal corrosion. |
Real-World Pain Points
Torsional Flex Under Heavy Braking
Single-disc front ends or heavy brake applications cause the fork legs to twist independently within the triple trees. This torsional flex pulls the front wheel off-center. The physical twisting causes steering oscillation and front-end dive during rapid deceleration.
The Cycparts brace bridges the 8.5-inch gap between the lower fork sliders. Constructed from rigid 6061-T6 aluminum, it physically restricts the legs from twisting independently. The front axle and triple trees maintain alignment under braking loads.
Mid-Corner Tracking Instability
Pushing a standard 49mm telescopic fork through a sweeper puts heavy lateral pressure on the front wheel. The factory setup allows the lower legs to deflect slightly under this load. This deflection translates into a vague, wandering feeling at the handlebars mid-turn.
Installing a rigid structural cross-member midway down the forks reinforces the suspension assembly. The 6061-T6 aluminum brace forces both fork legs to compress and rebound as a single unit. This physical lock maintains the tire's contact patch geometry through the turn.
Time-Intensive Front End Disassembly
Standard solid-ring fork braces require a full front-end teardown. The mechanic must raise the bike, remove the front wheel, unbolt the brake calipers, loosen the pinch bolts, and drop the fork tubes entirely out of the triple clamps just to slide the brace on.
The Cycparts component utilizes a 5-piece split design. The brackets unbolt, allowing the halves to clamp directly around the installed fork legs. The entire assembly bolts together while the motorcycle sits on the jiffy stand.
Clearance Issues with Inverted and Wide Front Ends
Riders frequently buy generic braces only to find they strike the fender, fail to wrap around inverted fork tubes, or lack the width for wide-glide triple trees. Clamping a narrow brace onto a Fat Boy or clamping an inverted Low Rider S fork binds the suspension internals.
This brace is machined specifically for the 8.5-inch center distance of the 2018-later FXST, FXLR, and FXBB conventional forks. It clears the factory fender. It is explicitly not compatible with the inverted forks on 2020-later Low Riders or the wider front ends of the Fat Boy and Breakout.
Garage Talk
Q: What is the torque spec for the brace bolts?
A: Use blue threadlocker on all hardware. Snug the bolts evenly in a cross pattern. Final torque to 12-15 ft-lbs to prevent stripping the aluminum threads.
Q: Do I need to lift the bike on a jack for installation?
A: No. The 5-piece split design allows installation with the bike resting on the kickstand. Ensure the front wheel is pointed straight before tightening.
Q: Will this clear my factory front fender?
A: Yes. It mounts to the exposed fork slider section above the fender mounting points on compatible FXST, FXLR, and FXBB models.
Q: Why does this not fit the 2020 Low Rider?
A: The 2020-later Low Rider models use an inverted fork setup. The outer tube diameter and suspension geometry differ entirely from standard conventional forks.
Q: Should I loosen my pinch bolts before installing this?
A: No. Leave the triple tree pinch bolts at factory torque specifications. Clamping the brace to an aligned, fully assembled front end prevents inducing stiction into the suspension travel.
Q: How do I check for fork binding after installing?
A: Straddle the bike, grab the front brake, and compress the front suspension forcefully multiple times. The forks must compress and rebound smoothly. Any harshness or sticking indicates the brace is misaligned.
