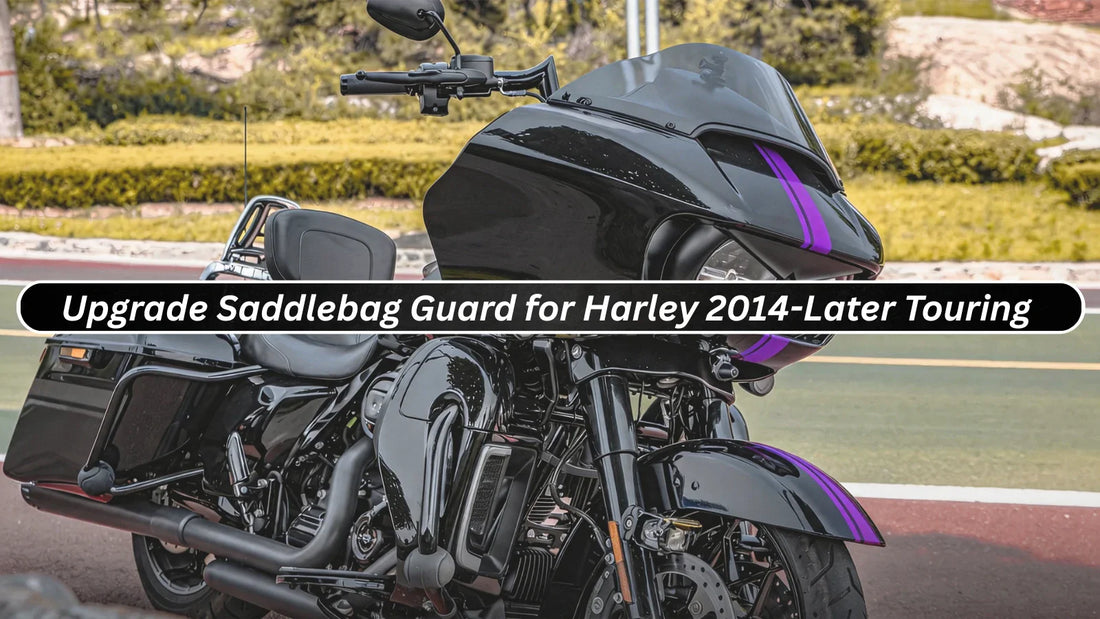

Why need upgrade Saddlebag Guard for Harley 2014-Later Touring Models

Factory under-bag supports on late-model Touring chassis leave fiberglass saddlebags fully exposed to crush damage during low-speed drops. The Cycparts bracket guard replaces the minimal stock support with a loop-style steel structure. This component hardpoints directly to the frame, transferring physical impact energy away from the luggage and exhaust components.

Feature	Application
AISI-1090 High Carbon Steel	High tensile strength tubing resists bending and structural collapse under the static weight of the motorcycle.
Loop-Style Structure	Replaces the minimal under-saddlebag support with a perimeter guard to establish a physical standoff for fiberglass luggage.
OEM Replacement	Directly replaces factory P/N 90200788 and 90200787 hardpoints.
Touring Fitment (2014-Later)	Compatible with Harley-Davidson Road King, Road Glide, Street Glide, and Electra Glide models.
Fitment Exceptions	Does not fit 2024-later FLHX/FLTRX or 2023-later FLHXSE/FLTRXSE chassis revisions.

Real-World Pain Points

Fiberglass Crush Damage on Tip-Overs

A stationary tip-over on a heavy bagger snaps the factory under-bag support bracket. The fiberglass saddlebag takes the full 800-pound static load of the motorcycle against the asphalt. The fiberglass splinters, the paint spiderwebs, and the internal mounting tabs rip straight through the bag housing.

The Cycparts guard introduces a steel perimeter loop around the front of the saddlebag. Constructed from AISI-1090 high-carbon steel, this bar takes the initial impact. The kinetic energy transfers through the high-tensile steel directly to the frame mounts, keeping the fiberglass physically off the ground.

Exhaust Pipe Compression

When a bagger goes down on its side without rear loop guards, the muffler acts as the secondary impact point. The weight of the rear section crushes the exhaust pipe against the swingarm. It also scrapes the heat shields flat against the pavement, requiring a full system replacement.

Installing loop-style guards creates a rigid physical standoff. The outer dimensions of the bracket guard hold the rear of the motorcycle suspended off the ground. The exhaust pipes maintain clearance from the pavement, preventing localized crushing and heat shield gouges.

Passenger Clearance Issues

During low-speed slides or minor parking lot drops, the rear section of the motorcycle can come very close to the rider's foot or leg due to the minimal factory under-saddlebag support. The heavy saddlebags and side covers have limited structural standoff, which may restrict movement around the rear of the bike.

The steel loop creates a physical void space between the motorcycle frame and the ground. The AISI-1090 high-carbon steel structure resists bending under the motorcycle's static weight.

Bent Factory Support Brackets

The factory under-saddlebag supports on modern Touring models are thin-gauge stamped metal. They bend easily during minor impacts or when riders incorrectly use the bag supports to tie down the rear of the bike on a trailer. Once the support bends inward, the saddlebags rub constantly against the side covers and rear shock springs.

The Cycparts guards replace the OEM support mechanism entirely. They bolt straight to the factory frame mounts. The thick-wall carbon steel tubing locks the saddlebags into the correct vertical alignment, preventing the bags from shifting inward and contacting the chassis or suspension components.

Garage Talk

Q: Do I need to remove the rear wheel to install these?

A: No. Remove the saddlebags and side covers. The mounting points bolt to the frame and are fully accessible from the sides of the chassis.

Q: Will these clear my aftermarket slip-on exhausts?

A: Yes. These bracket guards replace OEM P/N 90200788/90200787. If your slip-ons fit with the factory supports, they will clear these loop guards.

Q: Do these guards fit the new 2024 Street Glide?

A: No. They do not fit 2024-later FLHX or FLTRX models. They also do not fit 2023-later CVO models (FLHXSE/FLTRXSE).

Q: What is the torque spec for the upper shock mount bolts?

A: Refer to your specific service manual year. Generally, torque the upper shock fasteners to 35-40 ft-lbs. Use blue threadlocker on the threads.

Q: What size sockets do I need for the lower support mounts?

A: Most 2014-later Touring models use Torx fasteners for the lower support brackets. Keep a T40 and T45 socket on your lift table.

Q: How do I align the saddlebag quarter-turn fasteners after installation?

A: Leave the lower bracket bolts loose. Install the saddlebag and fully engage the internal Dzus fasteners. Torque the lower bracket bolts once the bag sits flush against the mounts.
