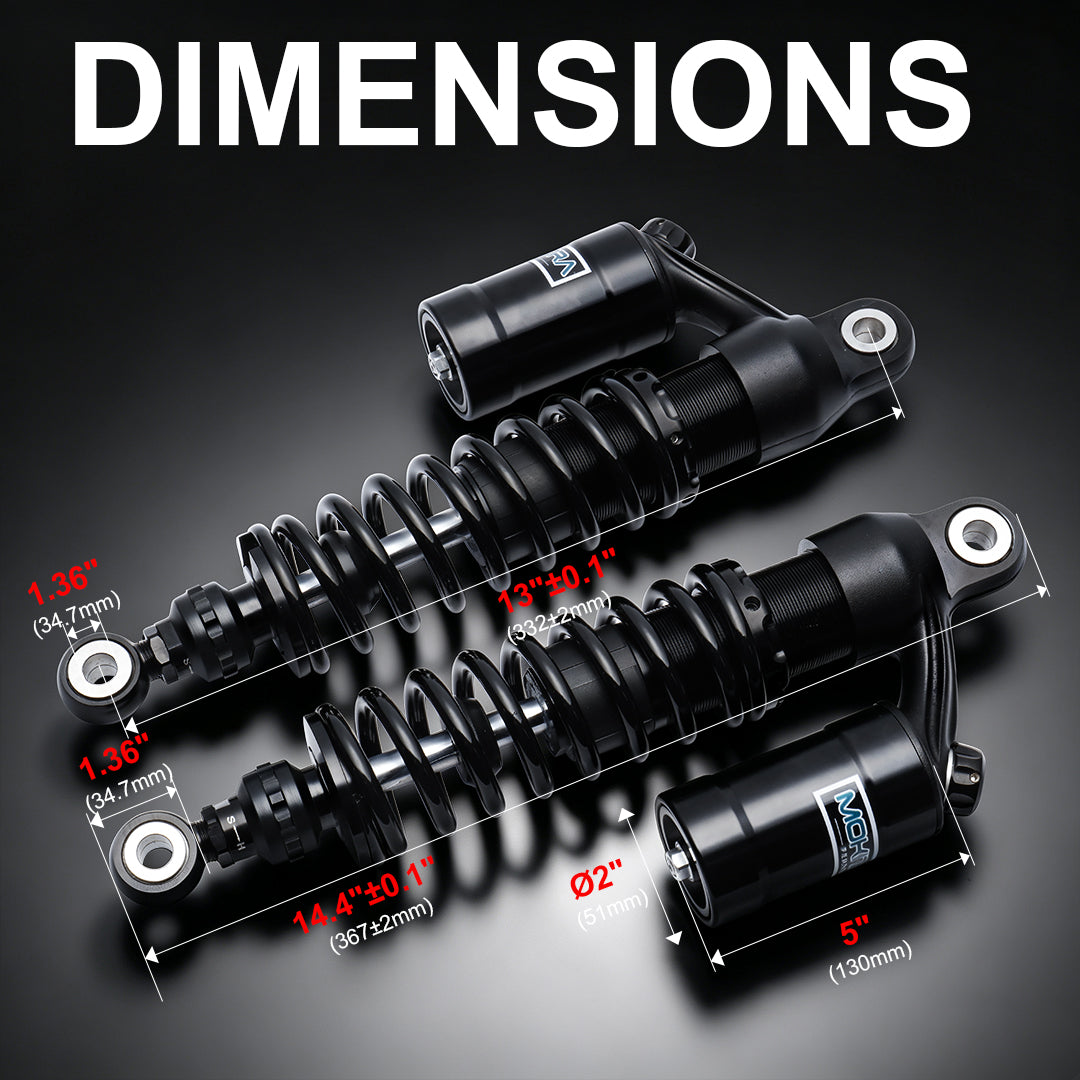

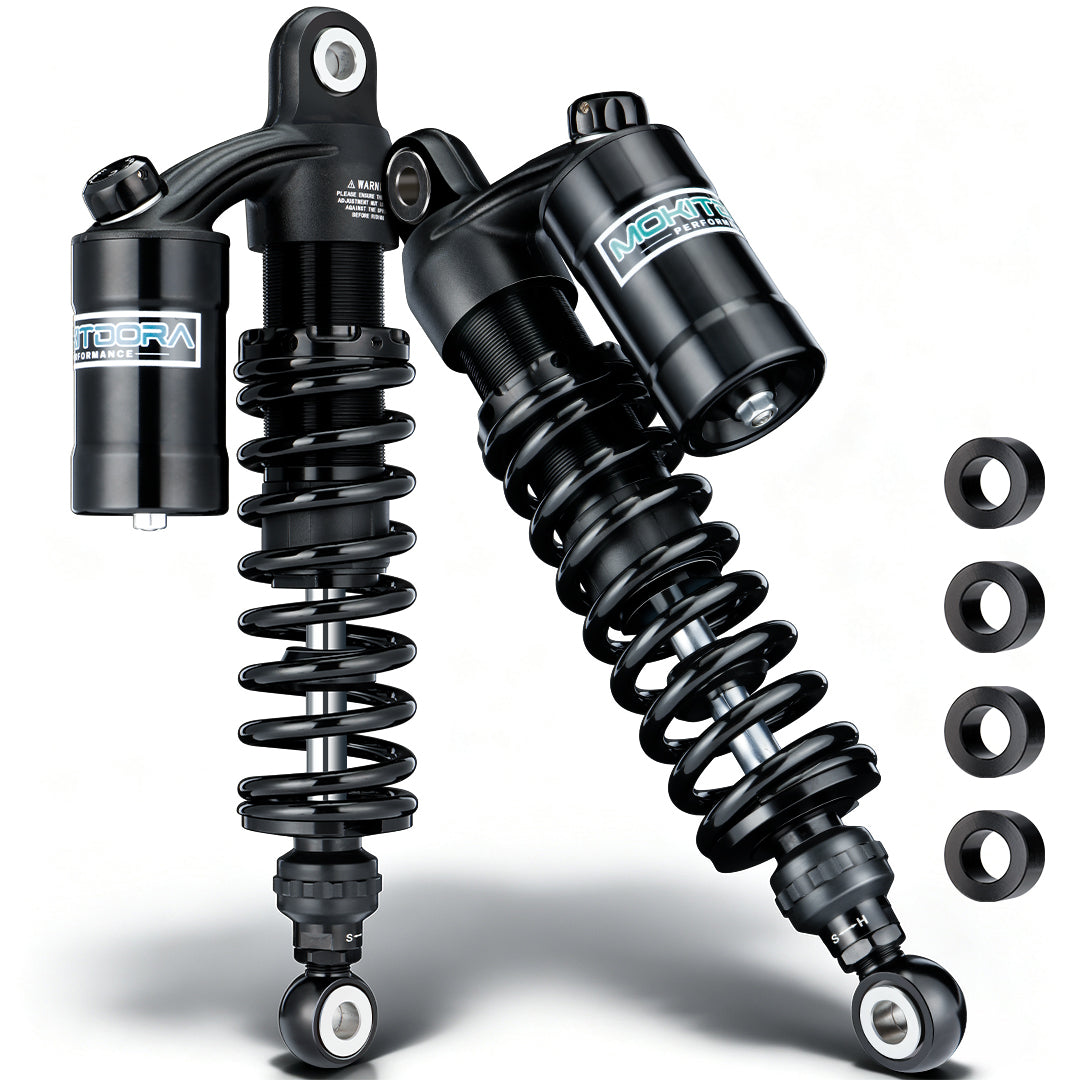

13 Inch Rear Shocks with Remote Reservoir for Dyna Sportster with Oxidized Reservoir

13 Inch Rear Shocks with Remote Reservoir for Dyna Sportster with Oxidized Reservoir

SKU:JFSC-2-0B0

Regular price $999.99 USD
Regular price Sale price $999.99 USD
Sale Sold out
Shipping calculated at checkout.
  • Fast Shipping
  • Guarantees
  • Free Return
View full details

Your items will be dispatched from the brand boutique closest to your delivery address. "Brand locations" include both our flagship stores and authorized partners.

For Harley-Davidson Models

2004-2022 Sportster XL 883/1200
1991-2017 Dyna Low Rider / Low Rider S / Super Glide / Wide Glide Street Bob / Fat Bob

Features

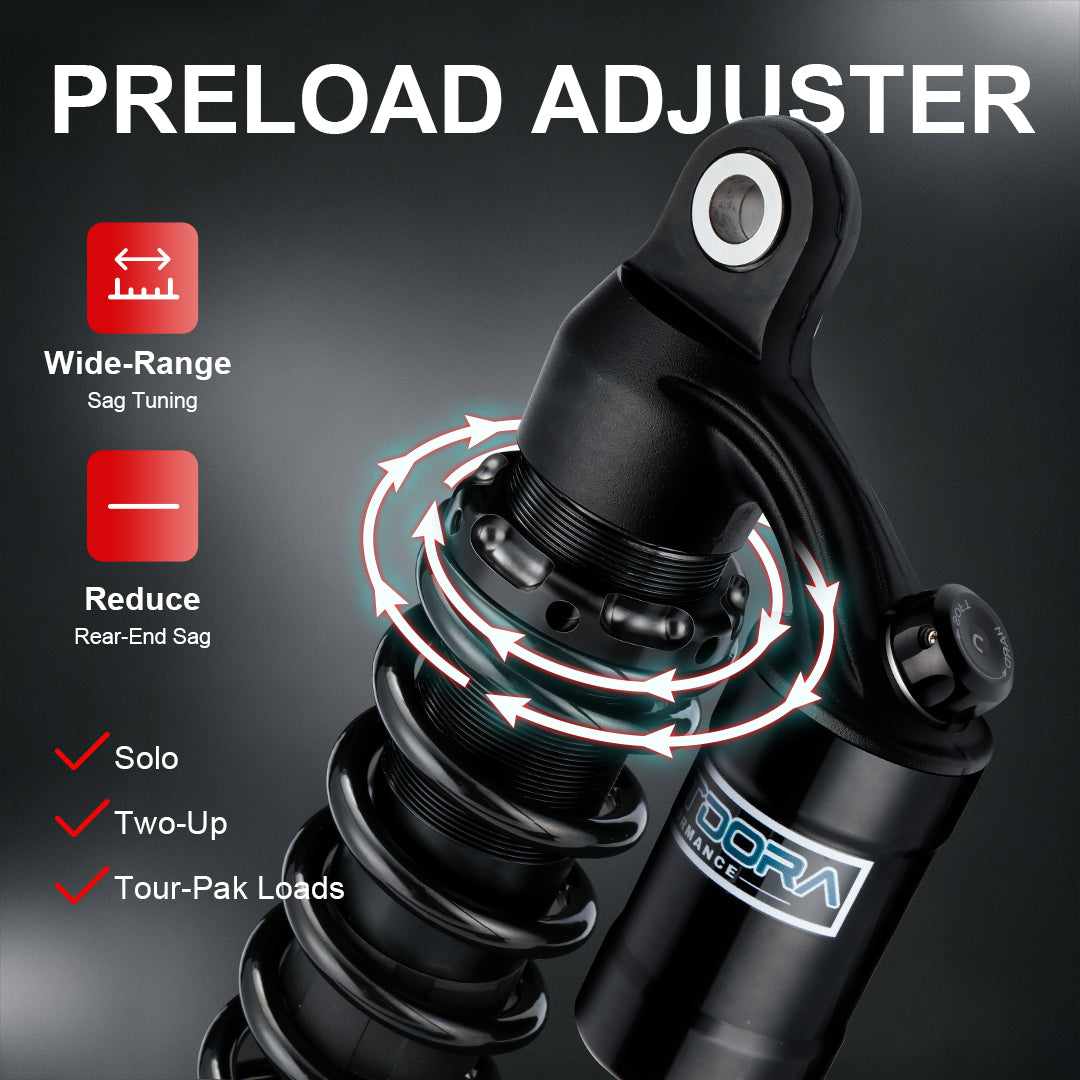

Preload Adjustment - This Dyna shock absorber allows you to adjust the suspension based on the weight of the rider, passenger, and luggage to achieve optimal performance.

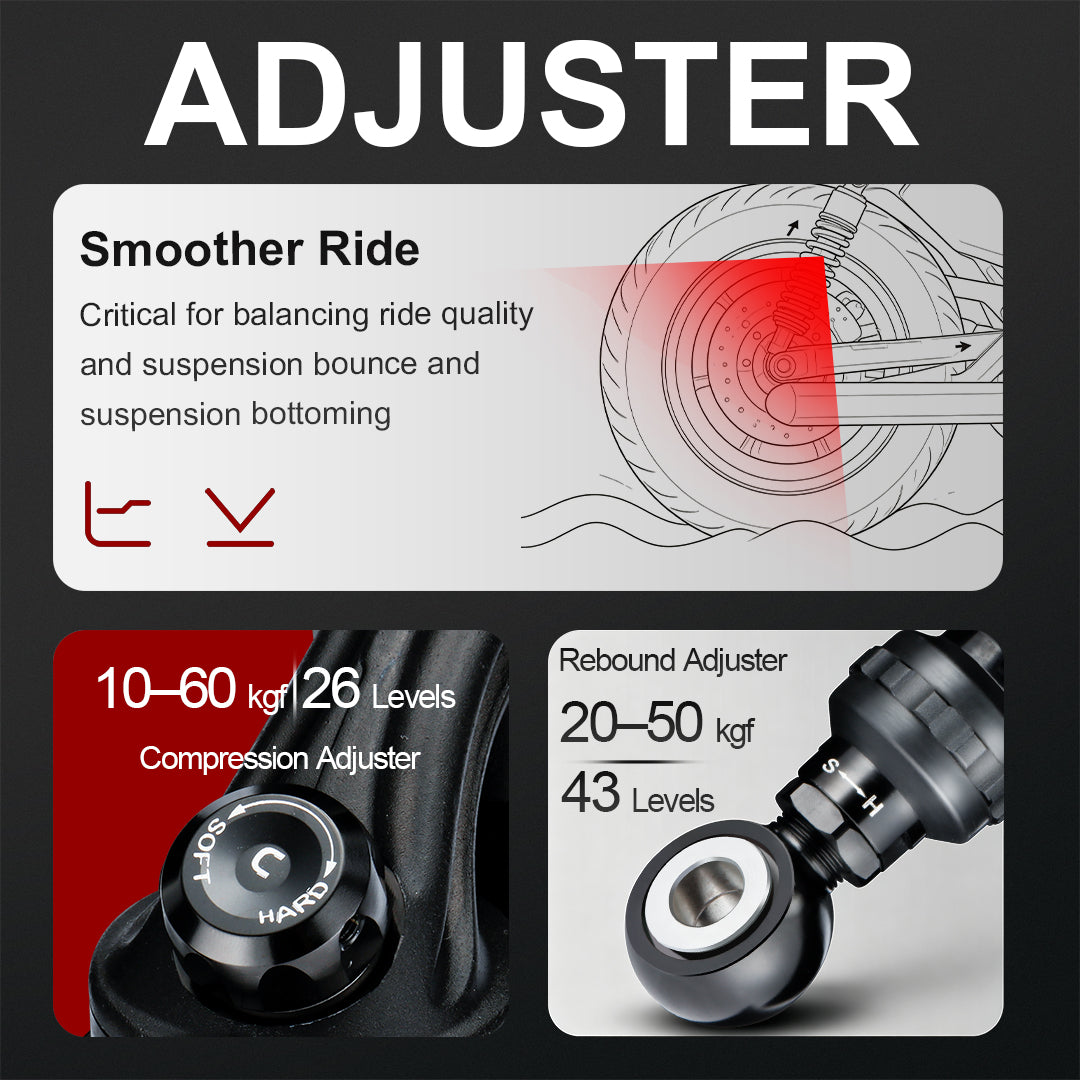

Damping Control - 26-click compression adjustment with a 10–60kgf damping force range; 43-click rebound adjustment with a 20–50kgf damping force range.

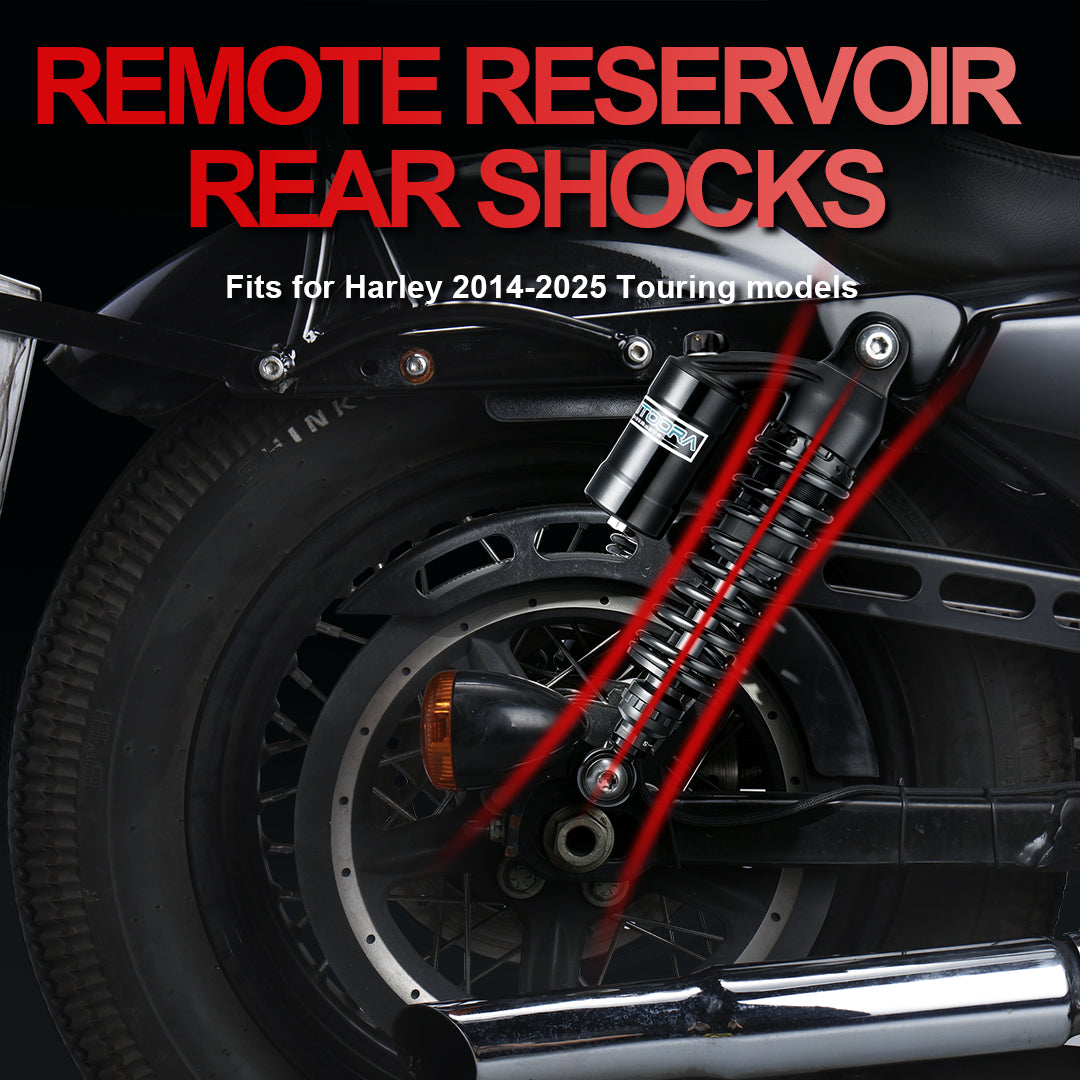

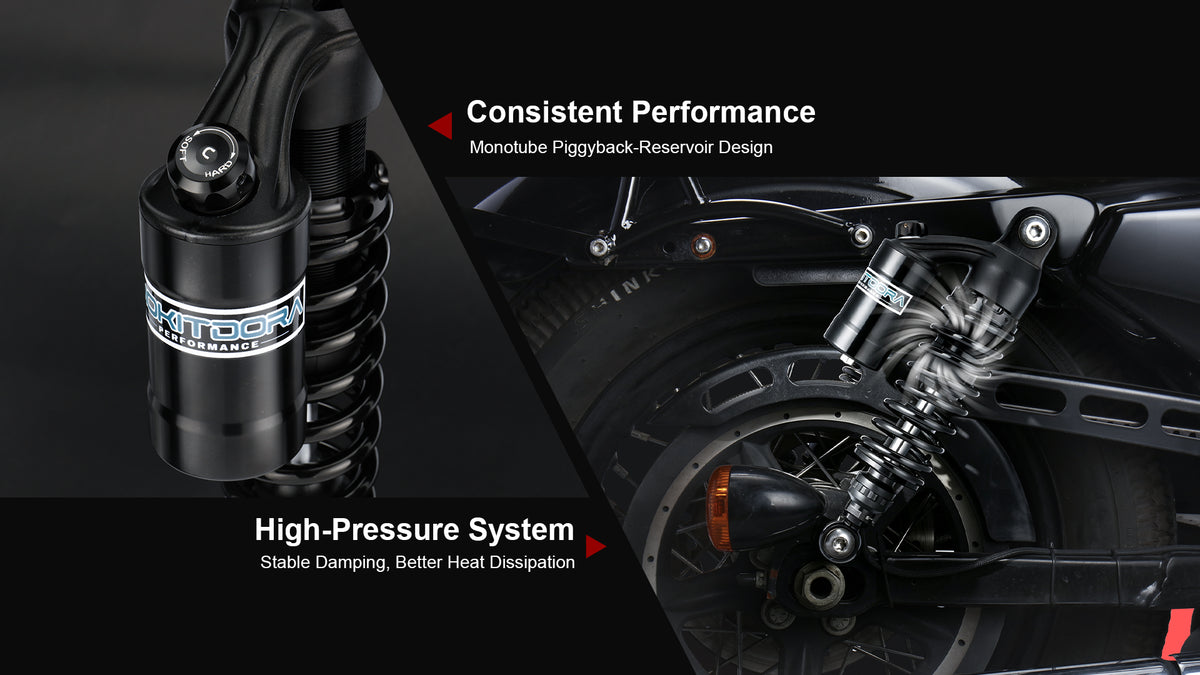

Remote Reservoir - Constructed from 6061 aluminum alloy. This monotube external piggyback reservoir enhances heat dissipation during demanding riding conditions, including off‑road excursions, heavy‑load hauling, and extended multi‑hour rides.

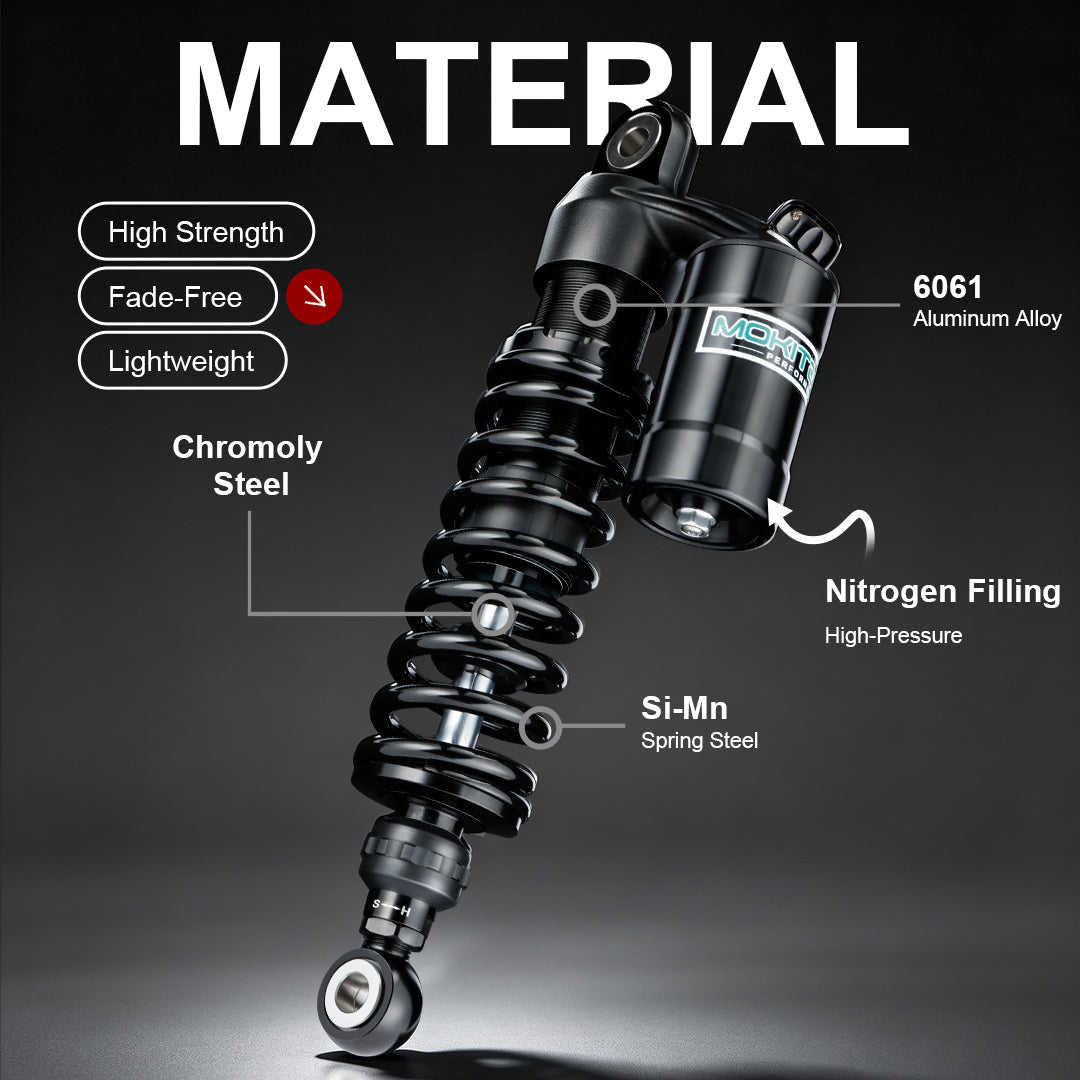

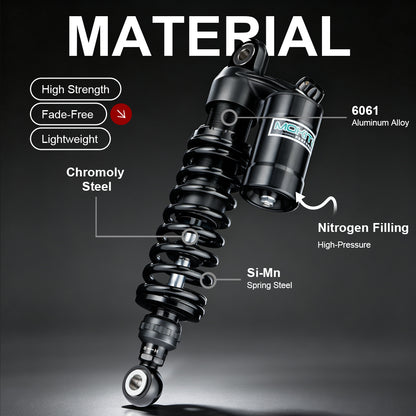

Premium Materials - The Sportster remote reservoir rear shock is made from a chrome-molybdenum alloy steel piston rod, a 6061 aluminum alloy reservoir and hardware, and high-strength silicon-manganese progressive spring steel.

High Load Capacity - Equipped with 180 lbs progressive springs and 82 mm effective travel, the complete set of shocks reaches a static bottom-out load capacity of 1102 lbs, providing stable support and no deformation under long-term heavy loads.

Easy Installation - Easy to install and calibrate; no tools are required to adjust compression and rebound damping adjustments, enabling quick, easy tweaks.

Technical Support

To keep every ride worry-free, CYCPARTS is on call 24/7. Shoot us an email via support@cycparts.com anytime—before you click “buy” or after the parts are on your bike.

USA: We will ship your item within 48 hours, and the delivery time is often 5-15 work days after shipping.

Canada: We will ship your item within 96 hours, and the delivery time is often 5-25 work days after shipping.

Mexico: We will ship your item within 96 hours, and the delivery time is often 5-25 work days after shipping.

Europe: We will ship your item within 96 hours, and the delivery time is often 5-25 work days after shipping.

Australia: We will ship your item within 96 hours, and the delivery time is often 5-25 work days after shipping.

Other Countries: We will ship your item within 96 hours, and the delivery time is often 5-25 work days after shipping.

Garage Talk

Do progressive springs automatically adjust when you add luggage?

No. A progressive spring doesn't automatically change its setting when the load changes. These shocks have adjustable preload so the suspension can be adjusted for the rider, passenger, and luggage. Follow the setup guidance for the shocks rather than assuming the spring will compensate for every load.

Does the 180 lbs progressive spring specification set a rider weight limit?

The product lists 180 lbs progressive springs, but that specification alone doesn't establish a maximum rider weight or total allowable load. If you need to match the springs to a particular rider and luggage load, confirm the manufacturer's recommended load range before purchasing.

Is the remote reservoir only useful for off-road riding?

Not necessarily. This shock's remote reservoir is designed to help dissipate heat under demanding conditions, including off-road excursions, heavy-load hauling, and extended rides. Those are the intended use cases described for the design, not a guarantee of a particular performance result in every situation.

What if the suspension still feels wrong after adjusting preload?

Preload is only one part of the setup. These shocks also have separate compression and rebound adjustments, so there's more than one setting to consider. Make changes gradually and follow the shock setup guidance. If the problem persists, check the installation and the condition of the suspension components rather than assuming another adjustment will fix everything.

Does tool-free damping adjustment mean the shocks install without tools?

No. The product description says compression and rebound damping can be adjusted without tools. That applies to those adjustments, not necessarily to mounting the shocks on the motorcycle. Don't confuse tool-free damping adjustment with tool-free installation.

Before replacing your Sportster shocks, have you checked the setup?

Sportster riders sometimes overlook preload adjustment when trying to figure out why their suspension doesn't feel right. This shock set offers adjustable preload, compression, and rebound, giving you more settings to work with. If your current shocks are worn or damaged, though, adjustment alone may not solve the problem.
